72 Vacuum Hose Spaghetti Routing

[Rey S.]

Re: 72 Vacuum Hose Spaghetti Routing

Monte, Thanks for the info. Are Dr. hoses actually backwards or is it just the color coding that's done wrong ? Rey 72 LS-502 Coupe

[Monte M.]

Re: 72 Vacuum Hose Spaghetti Routing

Rey,

The best way to say it is: Hook it up just like the Dr R. drawing and them swap the two that go to the headlight switch. It will be self explanitory when you get to that point.

M

[Michael W.]

Re: 72 Vacuum Hose Spaghetti Routing

Monte, Thanks for the info. Are Dr. hoses actually backwards or is it just the color coding that's done wrong ? Rey 72 LS-502 Coupe

There's an interesting story as to why the drawing is backwards.

[Rey S.]

Re: 72 Vacuum Hose Spaghetti Routing

Hi Michael, OK what's the story ??? Rey Stenhouse 72 LS-502 Coupe

[Michael W.]

Re: 72 Vacuum Hose Spaghetti Routing

http://www.docrebuild.com/dr-r-web/ZIP-CKS.HTML

[Rey S.]

Re: 72 Vacuum Hose Spaghetti Routing

Hi Terry Just a quick question. Back in July when answering my post you included 4 pictures. In the second pic looking down at the top of the master cylinder right below the Large hard vacuum pipe it show 3 vacuum hose going through the firewall.Are there 3 or 4 hoses at this point going through the firewall ? The AIM is not real clear.Thanks Rey1972 LS-5 502 coupe

[Terry M.]

Re: 72 Vacuum Hose Spaghetti Routing

Hi Terry Just a quick question. Back in July when answering my post you included 4 pictures. In the second pic looking down at the top of the master cylinder right below the Large hard vacuum pipe it show 3 vacuum hose going through the firewall.Are there 3 or 4 hoses at this point going through the firewall ? The AIM is not real clear.Thanks Rey1972 LS-5 502 coupe

Rey,

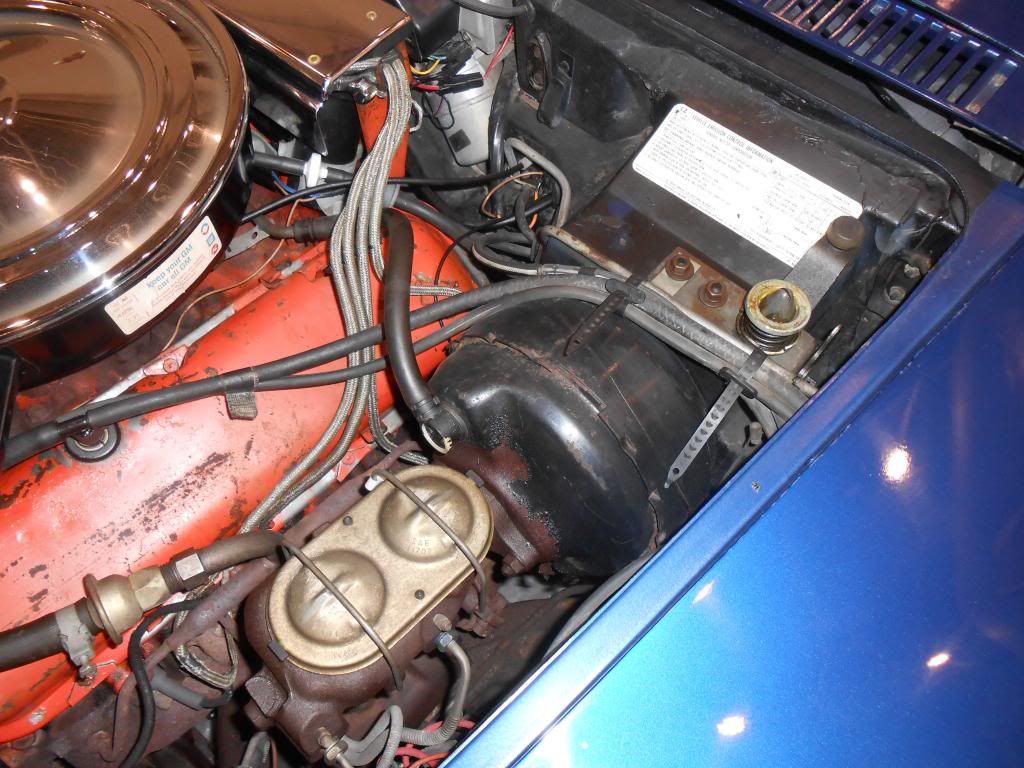

Here is a larger version of that picture. Looking at the original, I believe there are three hoses going through that grommet.

[Rey S.]

Re: 72 Vacuum Hose Spaghetti Routing

Terry Thank YouRey 1972 LS-502 Coupe
