1970 underbody heatshield/splashshield part numbers?

Collapse
X

  • Time
  • Show
Clear All
new posts
  • Mike F.
    Expired
    • April 25, 2011
    • 668

    1970 underbody heatshield/splashshield part numbers?

    My May built 1970 has the steel heat shield/splash shield attached to the lower firewall. My AIM shows the heat shields as part #'s 3963112 & 3947977. When I look those part number's up I get a description for 68-E69 plastic shields.

    What are the part numbers for the steel shields?

    My shields are beat to hell with rust, grease, oil, paint, etc.. Do I spend the time to restore (How do I make them gray phosphate again?) or are there correct looking repro's available?

    TIA,
    Mike
  • Alan S.
    Extremely Frequent Poster
    • July 31, 1989
    • 3415

    #2
    Re: 1970 underbody heatshield/splashshield part numbers?

    Hi Mike,
    I believe the shield part numbers are 3976545 and 3976546.
    There is a third number for the r.h. shield for a car with a/c, but I can't find it at the moment.
    Although mine were in quite good condition I was able to restore the finish by finding a flat pyrex baking dish that was large enough and just deep enough to successfully redo the phosphate finish on them.
    Paragon lists the left and right shields. They 'appear' to be accurate in the picture, and reasonably priced.
    Regards,
    Alan

    PS: I thought the a/c version of r.h. shield and it's # might be shown in the C60 Section, but it's not. It's noted as being in the list of items that are in the Bill of Materials for C60.
    71 Coupe, 350/270, 4 speed
    Mason Dixon Chapter
    Chapter Top Flight October 2011

    Comment

    • Mike F.
      Expired
      • April 25, 2011
      • 668

      #3
      Re: 1970 underbody heatshield/splashshield part numbers?

      Thanks Alan. Can you post a picture of yours? Trying to figure out how gray is gray?

      Comment

      • Alan S.
        Extremely Frequent Poster
        • July 31, 1989
        • 3415

        #4
        Re: 1970 underbody heatshield/splashshield part numbers?

        Hi Mike,
        I used the manganese phosphate rather than zinc phosphate. Manganese is the darker gray of the two.
        To my eye the zinc phosphate was too light a gray compared to the traces of the plating that remained on the shields.
        Here's a picture of a hood latch with the manganese phosphate on it. I can't get a good picture of either of the shields in place because my camera lens isn't fast enough to get the pic without a flash, and the 'flare' from the flash makes the actual color of the phosphate difficult to see.
        Hope this helps you.
        Regards,
        Alan

        71 Coupe, 350/270, 4 speed
        Mason Dixon Chapter
        Chapter Top Flight October 2011

        Comment

        • Patrick H.
          Beyond Control Poster
          • November 30, 1989
          • 11616

          #5
          Re: 1970 underbody heatshield/splashshield part numbers?

          You can see mine in at least 2 photos of my car via the link in my signature below. I would characterize them as being even darker than Alan's hood latches, perhaps charcoal gray.

          Patrick
          Vice-Chairman (West), Michigan Chapter NCRS
          71 "deer modified" coupe
          72 5-Star Bowtie / Duntov coupe. https://www.flickr.com/photos/124695...57649252735124
          2008 coupe
          Available stickers: Engine suffix code, exhaust tips & mufflers, shocks, AIR diverter valve broadcast code.

          Comment

          • Alan S.
            Extremely Frequent Poster
            • July 31, 1989
            • 3415

            #6
            Attached Files
            71 Coupe, 350/270, 4 speed
            Mason Dixon Chapter
            Chapter Top Flight October 2011

            Comment

            • Mike F.
              Expired
              • April 25, 2011
              • 668

              #7
              Re: 1970 underbody heatshield/splashshield part numbers?

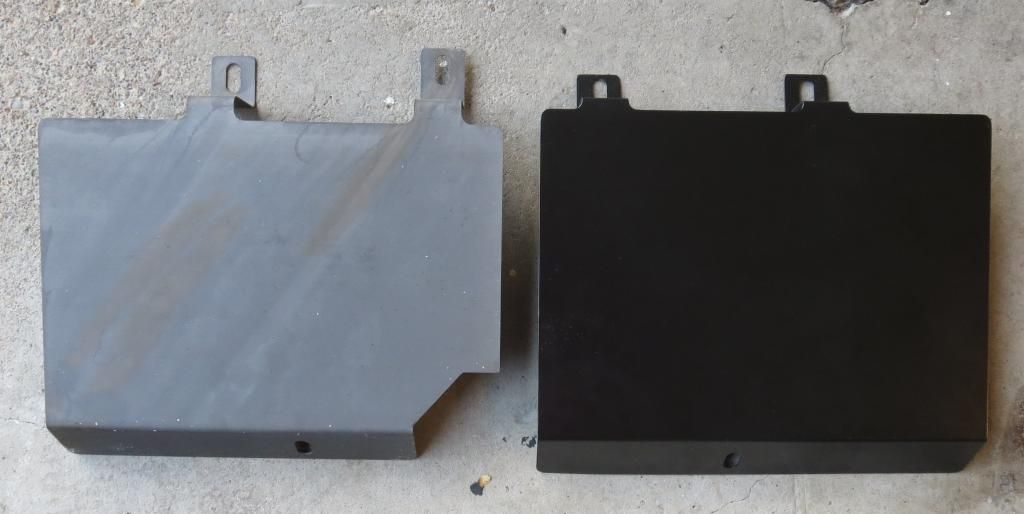

              I ordered a set of shields and received these. Obviously I need to speak with them on Monday.

              Comment

              • Patrick H.
                Beyond Control Poster
                • November 30, 1989
                • 11616

                #8
                Re: 1970 underbody heatshield/splashshield part numbers?

                Originally posted by Mike Furline (53259)
                I ordered a set of shields and received these. Obviously I need to speak with them on Monday.
                Or refinish them yourself. The original finish is probably halfway between them, but neither of those is close.
                Vice-Chairman (West), Michigan Chapter NCRS
                71 "deer modified" coupe
                72 5-Star Bowtie / Duntov coupe. https://www.flickr.com/photos/124695...57649252735124
                2008 coupe
                Available stickers: Engine suffix code, exhaust tips & mufflers, shocks, AIR diverter valve broadcast code.

                Comment

                • Joe L.
                  Beyond Control Poster
                  • January 31, 1988
                  • 43198

                  #9
                  Re: 1970 underbody heatshield/splashshield part numbers?

                  Originally posted by Mike Furline (53259)
                  I ordered a set of shields and received these. Obviously I need to speak with them on Monday.


                  Mike------


                  The one on the right looks like it's painted rather than phosphate-finished.
                  In Appreciation of John Hinckley

                  Comment

                  • Justin S.
                    Very Frequent User
                    • July 3, 2013
                    • 290

                    #10
                    Re: 1970 underbody heatshield/splashshield part numbers?

                    What are the specs on these bolts and do they just pass through the firewall?

                    Comment

                    • Justin S.
                      Very Frequent User
                      • July 3, 2013
                      • 290

                      #11
                      Re: 1970 underbody heatshield/splashshield part numbers?

                      Any help or a direction to the proper page in the AIM would be appreciated.

                      Comment

                      • Joe L.
                        Beyond Control Poster
                        • January 31, 1988
                        • 43198

                        #12
                        Re: 1970 underbody heatshield/splashshield part numbers?

                        Originally posted by Justin Sibbring (58615)
                        Any help or a direction to the proper page in the AIM would be appreciated.
                        Justin------

                        It's shown on UPC 1, sheet D9 of the 1970 AIM.
                        In Appreciation of John Hinckley

                        Comment

                        • Justin S.
                          Very Frequent User
                          • July 3, 2013
                          • 290

                          #13
                          Re: 1970 underbody heatshield/splashshield part numbers?

                          Thanks Joe,
                          I misread the post above with the picture of the bolts. It looks like these shields are attached by studs which are mounted by rivets to the firewall.

                          Justin

                          Comment

                          • Mark E.
                            Extremely Frequent Poster
                            • March 31, 1993
                            • 4503

                            #14
                            Re: 1970 underbody heatshield/splashshield part numbers?

                            Hi Mike,

                            I'm glad to see you still have your L46.

                            A set of good used shields is an option. Try Sokoloski or another source from Driveline.

                            Yes, they're attached with studs on the bulkhead/floor.
                            Mark Edmondson
                            Dallas, Texas
                            Texas Chapter

                            1970 Coupe, Donnybrooke Green, Light Saddle LS5 M20 A31 C60 G81 N37 N40 UA6 U79
                            1993 Coupe, 40th Anniversary, 6-speed, PEG 1, FX3, CD, Bronze Top

                            Comment

                            • Justin S.
                              Very Frequent User
                              • July 3, 2013
                              • 290

                              #15
                              Re: 1970 underbody heatshield/splashshield part numbers?

                              What type of rivet gun works for these short rivets?
