1972 Wiper Door Vacuum Relay Location

[Jeff Y.]

I know the valve is mounted on the forward side of the right side inner fender well but someone has removed it and there is only one hole that I can find that is anywhere close to where I think it should be. I know there should be 4 holes and I think the mounting plates goes on the tire side of the fender well.

Can anyone give me the dimensions to locate the holes? The holes must have been filled in, or the fender well was replaced.

Thanks,

Jeff

[Alan S.]

Re: 1972 Wiper Door Vacuum Relay Location

Hi Jeff,

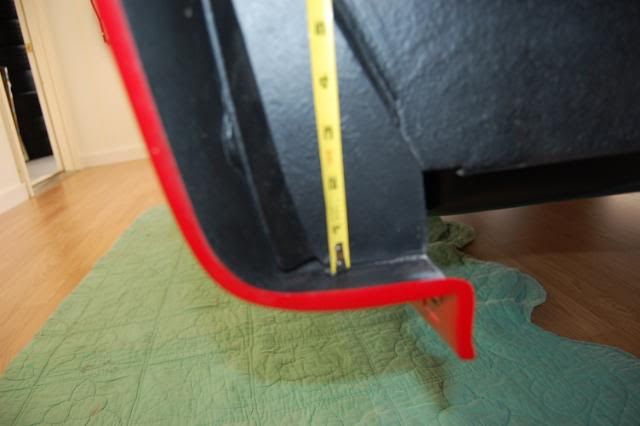

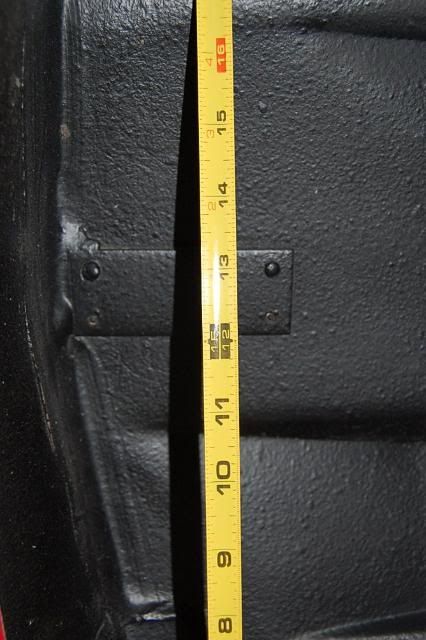

Here's the relay's plate from my 71.
Note the plate is close to the fender panel so some bond is on the plate. Also, the 2 rivets are in the top holes, and the relay's mounting screws in the bottom holes.
I hope this helps!
Regards,
Alan

[Jeff Y.]

Re: 1972 Wiper Door Vacuum Relay Location

Alan,

These photos are perfect. Thanks for your help.

Jeff
