    Prototype intake manifold

    Hi,

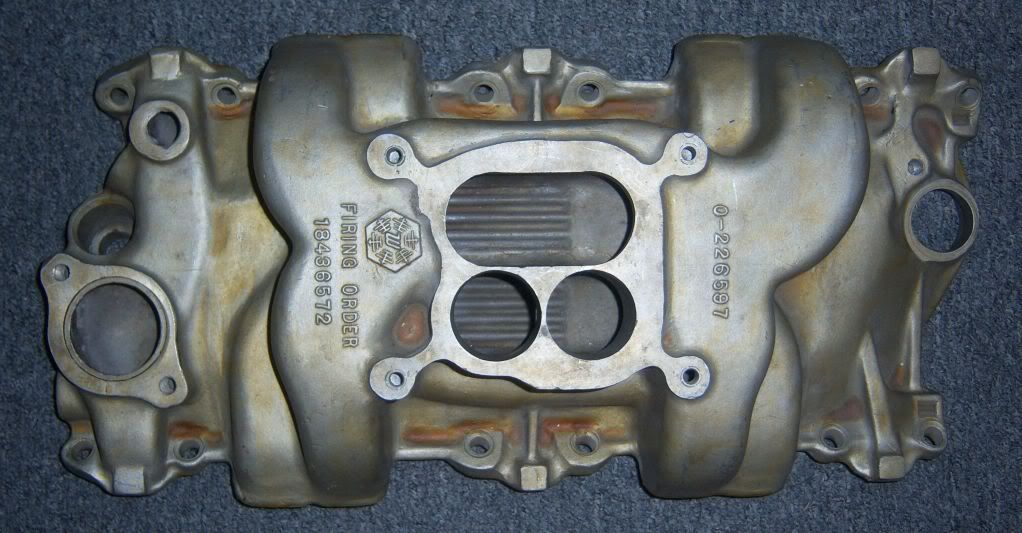

    I'm new here and have a question about a prototype Chevy intake manifold I have. It has a date of 3-13-64 on the bottom of it and it has some cosmoline on it as a protectant. The style of runners is different from the more squared off angles typical of Chevy manifolds of the time. Is this manifold of mine a one-off attempt to try a different runner design? Was it possibly meant for a specific engine application that did not come to pass? I'm curious if anybody might be able to shed some light on the history of the development of this intake.

    Thank you,
    Jon Mello

  • Michael H.
    Expired
    • January 29, 2008
    • 7477

    #2
    Re: Prototype intake manifold

    Originally posted by Jon Mello (51322)
    Hi,

    I'm new here and have a question about a prototype Chevy intake manifold I have. of this intake.

    Thank you,
    Jon Mello
    Hello Jon. Welcome to the NCRS discussion board. I haven't chatted with you for several years. Good to hear from you. (Jon and I know each other from the early Camaro days)

    Interesting manifold. Those 0-xxxxxx castings are always good for a few pages of discussion.

    Michael
    Last edited by Michael H.; January 30, 2011, 06:14 PM.

    Comment

    • Joe C.
      Expired
      • August 31, 1999
      • 4598

      #3
      Re: Prototype intake manifold

      Originally posted by Jon Mello (51322)
      Hi,

      I'm new here and have a question about a prototype Chevy intake manifold I have. It has a date of 3-13-64 on the bottom of it and it has some cosmoline on it as a protectant. The style of runners is different from the more squared off angles typical of Chevy manifolds of the time. Is this manifold of mine a one-off attempt to try a different runner design? Was it possibly meant for a specific engine application that did not come to pass? I'm curious if anybody might be able to shed some light on the history of the development of this intake.

      Thank you,
      Jon Mello


      Jon,

      Striking similarity to the intake first seen in production on the 1967 DZ motor. Again used for 1968, 1969, and later used on the 1970-1972 LT1.

      The production manifolds had stoves on the right side for divorced chokes. They all had common plenum bores on the lower plenum half as well as the upper half as shown in your prototype.

      Judging from Michael's comments, you are already familiar with the above. I commented for the benefit of those who are not.
      Last edited by Joe C.; January 30, 2011, 05:33 PM.

      Comment

      • Jon M.
        Expired
        • February 2, 2010
        • 13

        #4
        Re: Prototype intake manifold

        Michael, it's great to see your name again. It has been awhile.

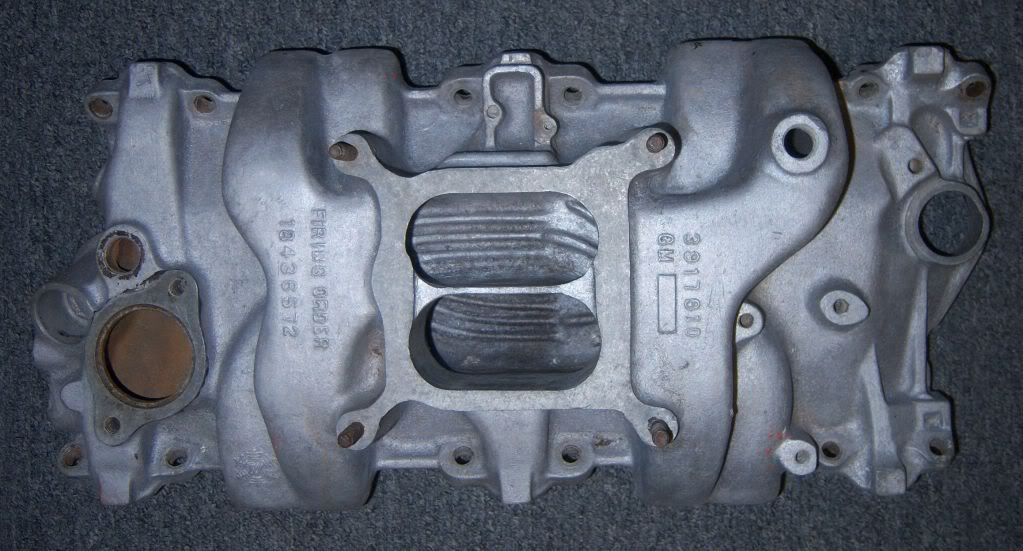

        I appreciate the comments, Joe. Yes, it does have some of the general look of the early Z manifold. The rear runner to #8 is a bit fatter in the prototype, kind of like the Edelbrock C3BX. Also interesting there is no port for vacuum in that runner nor any provision for mounting a coil on the manifold.. This prototype manifold was done before the Mustang came out and thus Camaro wouldn't have been on Chevy's mind at the time. Were they just developing a manifold without a specific car application in mind? Below I have put a picture of the '67-'68 Z manifold to make it easy to compare.

        -Jon



        Comment

        • Michael F.
          Expired
          • June 4, 2009
          • 291

          #5
          Re: Prototype intake manifold

          I would love to know how it flows. Looks like a great "stock" stroker intake.

          Comment

          • Tom B.
            Very Frequent User
            • March 1, 1978
            • 720

            #6
            Re: Prototype intake manifold

            The runners do appear larger and there is no heat crossover which would explain why there is no choke boss. I doubt that this intake was ever intended for production vehicles.

            Tom

            Comment

            • Joe L.
              Beyond Control Poster
              • February 1, 1988
              • 43213

              #7
              Re: Prototype intake manifold

              Originally posted by Tom Bryant (1360)
              The runners do appear larger and there is no heat crossover which would explain why there is no choke boss. I doubt that this intake was ever intended for production vehicles.

              Tom
              Tom-----


              I agree. As far as I know there was never a PRODUCTION carbureted engine built that did not use an exhaust heat cross-over. So, this must have been some sort of prototype manifold for over-the-counter sale or racing application.
              In Appreciation of John Hinckley

              Comment

              • Rex T.
                Very Frequent User
                • December 1, 1984
                • 455

                #8
                Re: Prototype intake manifold

                Hi Jon, very neat and rare item you have there. I'm sure you are aware that the 0 - (O dash) casting number designates the intake as a prototype or experimental unit. GM used the 0 - casting numbers for all their prototype pieces. I've managed to collect some of these prototype parts for Can Am engines over the years. If you have not contacted Wayne Guinn, you may want to do so. He has a lot of information on GM prototype parts. Here is a link to his website.



                Good luck with your search.

                Rex

                Comment

                • Cecil L.
                  Very Frequent User
                  • May 31, 1980
                  • 449

                  #9
                  Re: Prototype intake manifold

                  The mounting pad looks like AFB and there are no coil mounting bosses.

                  Comment

                  • Jon M.
                    Expired
                    • February 2, 2010
                    • 13

                    #10
                    Re: Prototype intake manifold

                    I appreciate all the comments so far. I have not tried Wayne Guinn but will try and do so.

                    Comment

                    • James G.
                      Extremely Frequent Poster
                      • May 31, 1976
                      • 1556

                      #11
                      Re: Prototype intake manifold

                      Originally posted by Rex Turner (8089)
                      Hi Jon, very neat and rare item you have there. I'm sure you are aware that the 0 - (O dash) casting number designates the intake as a prototype or experimental unit. GM used the 0 - casting numbers for all their prototype pieces. I've managed to collect some of these prototype parts for Can Am engines over the years. If you have not contacted Wayne Guinn, you may want to do so. He has a lot of information on GM prototype parts. Here is a link to his website.



                      Good luck with your search.

                      Rex
                      I agree with Rex. "0- xxx" parts were usually "Engineering numbers" usued on special parts. The 57 SEBRING car I found had 0-xxx springs. A GM Spring engineer has traced the blue prints back to 8 units being produced. Each car got 2 each and a spare set.

                      Ken Kayser in Michigan may be able to help and John Hinkley. Both were with GM and Chevrolet for many years in Production and Powertrain.

                      Send me a PM Jon, if you need to follow with them also.
                      Over 80 Corvettes of fun ! Love Rochester Fuel Injection 57-65 cars. Love CORVETTE RACE CARS
                      Co-Founder REGISTRY OF CORVETTE RACE CARS.COM

                      Comment

                      • Clem Z.
                        Expired
                        • January 1, 2006
                        • 9427

                        #12
                        Re: Prototype intake manifold

                        Originally posted by Jon Mello (51322)
                        I appreciate all the comments so far. I have not tried Wayne Guinn but will try and do so.
                        try bill howell in marine city mich as he was the GM engineer at the tracks with the trans am camaros. bill used to send me over to spy on the ford guys at the races.

                        Comment
