1995 FX3 Front Shock Assembly

[Ed N.]

Has anyone ever installed or removed a FX3 front shock on a 93 to 95? How do you determine how much of the rod shaft gear to allow to protrude above the mounting cup when tightening the bolt, so it will catch the actuator correctly and not damage it. Is there a technique to this process? I'm going to be replacing my mounting cups and was concerned about that issue. The car is a 1995.

Any help would be appreciated.

[Joe L.]

Re: 1995 FX3 Front Shock Assembly

Has anyone ever installed or removed a FX3 front shock on a 93 to 95? How do you determine how much of the rod shaft gear to allow to protrude above the mounting cup when tightening the bolt, so it will catch the actuator correctly and not damage it. Is there a technique to this process? I'm going to be replacing my mounting cups and was concerned about that issue. The car is a 1995.

Any help would be appreciated.

Ed------


Have you checked the 1995 Corvette Factory Service Manual?

[Ed N.]

Re: 1995 FX3 Front Shock Assembly

Ed------


Have you checked the 1995 Corvette Factory Service Manual?

Yes, it does give "general" information and spec for the nut, and it does give a minimum protrusion for the shaft gear. I'm looking for some hands-on experience though. Maybe I'm just not trusting myself with the process.

[Richard M.]

Re: 1995 FX3 Front Shock Assembly

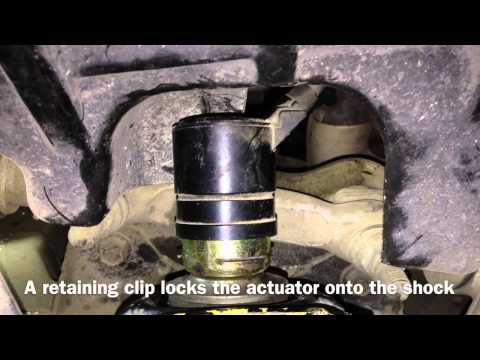

Ed, Whenever I embark on new and unfamiliar territory on my C6, I jump on the net and do some searches....

This one may help. It's a 1991 so not sure if different.

Rich

[Joe L.]

Re: 1995 FX3 Front Shock Assembly

Rich and Ed------


1991 and 1995 FX3 are essentially the same.

[Ed N.]

Re: 1995 FX3 Front Shock Assembly

Thanks Rich. I have seen this video, but it does not show when he torques down the nut and how much of the gear shaft he allows to protrude above the cup. I'm just going to measure the gear shaft tip (factory default setting), how much it protrudes above the mounting cup and I'll just duplicate that setting upon replacing the washer and mounting cup. I'm attaching a picture of what they recommend.

[Richard M.]

Re: 1995 FX3 Front Shock Assembly

Ed, It looks about the same as in this link....maybe you already saw this. http://www.captainzcnc.com/id2.html

You may want to drop Aaron a email and ask him. Appears he's the expert. It's on the "Ordering" page of his website.

Rich
