70 Exhaust Bezel Screws?

Collapse
X

  • Time
  • Show
Clear All
new posts
  • Joe L.
    Beyond Control Poster
    • February 1, 1988
    • 43221

    #31
    Re: 70 Exhaust Bezel Screws?

    Originally posted by Gary Bosselman (2575)
    Attached are pictures of a fairly early 72, uses the pan-head style of screws. I just do not know when they started using those, I think some time mid to late 71. I'll have to start paying more attention to that when I Judge engine compartments!

    As a side note. Mid-year windshield stainless trim, the clips and screws that hold them on. Those screws are very similar to C3 exhaust bezel side screws. EXCEPT, they are VERY short. If you rotate the J-clips around, point them inside, they do work and hold.

    [ATTACH=CONFIG]54549[/ATTACH][ATTACH=CONFIG]54550[/ATTACH]

    Gary-------


    The same GM #4816192 screw that was been supposed to have been used on 1970-72 Corvette exhaust bezels was used to retain the side windshield revel moldings on C2 Corvettes.
    In Appreciation of John Hinckley

    Comment

    • Gary B.
      Very Frequent User
      • July 31, 1979
      • 926

      #32
      Re: 70 Exhaust Bezel Screws?

      Joe,

      I buy the clip and screw set, for a C2 windshield molding, from one of our favorite vendors, use the screws and throw the clips away. The screws are very short, maybe 1/4" long? I usually just turn the j-nut, facing towards the bezel, then insert the screws. It works...

      I have also kept the screws when I replace a windshied and install new clips.

      I'll have to look at the C2 side windshield molding, next time I get one in the shop. I'll let you know what I find.

      Gary B

      Comment

      • Terry M.
        Beyond Control Poster
        • September 30, 1980
        • 15599

        #33
        Re: 70 Exhaust Bezel Screws?

        Originally posted by Gary Bosselman (2575)
        Joe,

        I buy the clip and screw set, for a C2 windshield molding, from one of our favorite vendors, use the screws and throw the clips away. The screws are very short, maybe 1/4" long? I usually just turn the j-nut, facing towards the bezel, then insert the screws. It works...

        I have also kept the screws when I replace a windshied and install new clips.

        I'll have to look at the C2 side windshield molding, next time I get one in the shop. I'll let you know what I find.

        Gary B
        My totally unscientific hunch is that the bezel was supposed to be countersunk, but something fell through the cracks. Whoever supplied the screw didn't get the message to provide a longer screw until late 1971 model year. If the bezel were countersunk, or formed with a countersink, that short 1/4-inch screw would be adequate.
        Terry

        Comment

        • Alan S.
          Extremely Frequent Poster
          • July 31, 1989
          • 3416

          #34
          Re: 70 Exhaust Bezel Screws?

          Hi Gary,
          The screws in your pictures certainly look like they've been nestled in the bezels for a good while.
          Is the 14,894 car a 70 or 71?
          Your right, it's fun to continue learning things!
          Regards,
          Alan
          71 Coupe, 350/270, 4 speed
          Mason Dixon Chapter
          Chapter Top Flight October 2011

          Comment

          • Gary B.
            Very Frequent User
            • July 31, 1979
            • 926

            #35
            Re: 70 Exhaust Bezel Screws?

            Alan,
            It is a 1971.
            Gary

            Comment

            • Warren F.
              Expired
              • December 1, 1987
              • 1516

              #36
              Re: 70 Exhaust Bezel Screws?

              Gary,
              Both of my '71's screws are very short and look like the ones in your picture, vin' s 12659 & 15065.

              Comment

              • Joe L.
                Beyond Control Poster
                • February 1, 1988
                • 43221

                #37
                Re: 70 Exhaust Bezel Screws?

                Originally posted by Warren Friedrich (12139)
                Gary,
                Both of my '71's screws are very short and look like the ones in your picture, vin' s 12659 & 15065.
                Warren-------


                Gary posted photos of at least 2 cars, each with different screws. Which ones are yours like?
                In Appreciation of John Hinckley

                Comment

                • Warren F.
                  Expired
                  • December 1, 1987
                  • 1516

                  #38
                  Re: 70 Exhaust Bezel Screws?

                  Joe,
                  Just like the pictures in post #27.

                  Comment

                  • Bill L.
                    Expired
                    • February 1, 2004
                    • 1403

                    #39
                    Re: 70 Exhaust Bezel Screws?

                    Originally posted by Gary Bosselman (2575)
                    Pictures from 1970, s/n 2161. Is also the same on #5774, #8448, #14544 and also on a 1971 #11,219. What I find most common is the "washered" screws are horizontal and the flat head with built in washer, go vertical. I feel this was used well into 71, then they changed over to pan-head screws. The screws used in 70 and 71 were very short, and barely gripped the J-nut.

                    The 71 I have here, has the "washered" head (first picture) in all eight locations, no flat head screws.

                    I have pictures of all five of the listed cars, if you want.

                    Again, my opinion.

                    Gary Bosselman


                    [ATTACH=CONFIG]54545[/ATTACH][ATTACH=CONFIG]54546[/ATTACH]
                    The screw in the second picture looks a lot like an interior screw. Going from memory, but it resembles the screw that attaches the side covers to the center console.

                    The other screw looks exactly like the screw that fastens the fender molding as may already have been noted in an earlier post.

                    Bill

                    Comment

                    • Kenneth B.
                      Extremely Frequent Poster
                      • August 31, 1984
                      • 2089

                      #40
                      Re: 70 Exhaust Bezel Screws?

                      And some thought we went on & on about a dipstick. This is unreal because no one can tell for sure what screw was used on what year. I am sure at the factory a screw that worked is the one they used. Don't understand why a judge would deduct for any of the screws I see here. Maybe a ego thing.
                      65 350 TI CONV 67 J56 435 CONV,67,390/AIR CONV,70 454/air CONV,
                      What A MAN WON'T SPEND TO GIVE HIS ASS A RIDE

                      Comment

                      • Mike F.
                        Expired
                        • April 25, 2011
                        • 668

                        #41
                        Re: 70 Exhaust Bezel Screws?

                        Originally posted by Kenneth Barry (7808)
                        And some thought we went on & on about a dipstick. This is unreal because no one can tell for sure what screw was used on what year. I am sure at the factory a screw that worked is the one they used. Don't understand why a judge would deduct for any of the screws I see here. Maybe a ego thing.
                        I don't think it was an ego thing. I was just frustrated that no two judges could agree on what the correct type of screw should be. I'm going to use what is installed on Terry's car and let the chips fall where they may.

                        Comment

                        • Don H.
                          Moderator
                          • June 16, 2009
                          • 2258

                          #42
                          Re: 70 Exhaust Bezel Screws?

                          After all the different opinions expressed in this thread, it seems that probably no two people anywhere will be able to agree on what is typical. An exercise in futility.
                          I would go with what Terry has and call it done.

                          Comment

                          • Mike F.
                            Expired
                            • April 25, 2011
                            • 668

                            #43
                            Re: 70 Exhaust Bezel Screws?

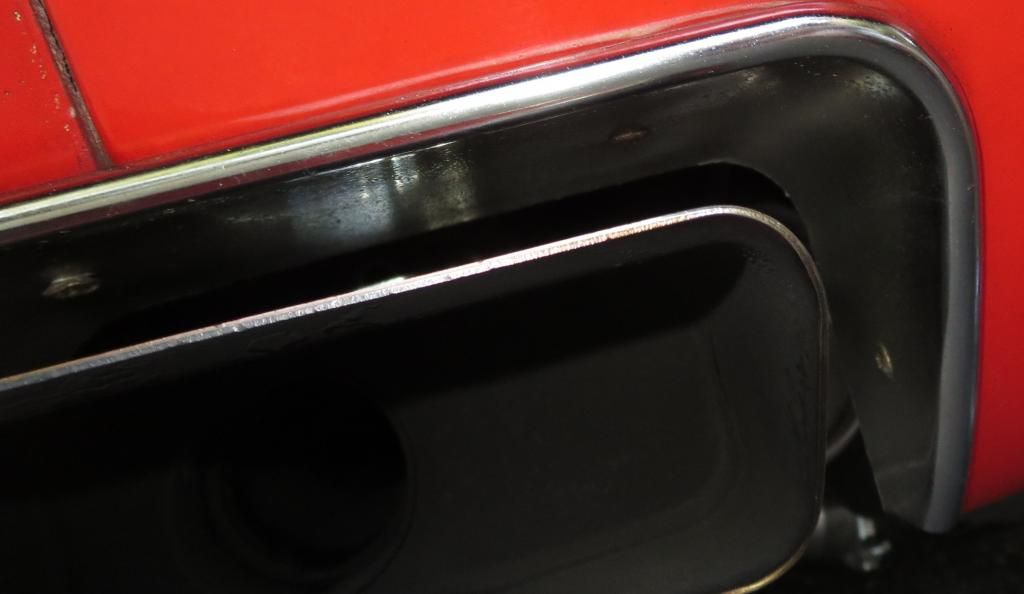

                            As luck would have it, I ran into a guy that has a 70 LT-1 with 15k miles on it (#14888). Looks to be the same as Terry's (and now mine).

                            Last edited by Mike F.; August 26, 2014, 08:38 PM.

                            Comment

                            • Bill L.
                              Expired
                              • February 1, 2004
                              • 1403

                              #44
                              Re: 70 Exhaust Bezel Screws?

                              Hi Mike,

                              My 70 is very close to the serial number 14,888. It was made a little earlier in June.

                              Where did you get the screw in the top? I have 8 of the type in the sides.

                              Thanks, Bill

                              Comment

                              • Mike F.
                                Expired
                                • April 25, 2011
                                • 668

                                #45
                                Re: 70 Exhaust Bezel Screws?

                                Originally posted by Bill Lennox (41387)
                                Hi Mike,

                                My 70 is very close to the serial number 14,888. It was made a little earlier in June.

                                Where did you get the screw in the top? I have 8 of the type in the sides.

                                Thanks, Bill
                                What do you mean "screw in the top"?

                                When I removed my original bezels a month or so ago, all eight screws were the oval head type with built in washer, screw #3 pictured in my original post. I have no idea when they were installed. My bezels were original, but the screws could have been replaced at any time before I owned the car or all eight could have been original to my car. Who knows?
                                After reviewing the pictures of Terry's car (#2161) and car (#14888) tonight, I now believe that four of my eight screws were correct for the bezel (the ones going vertically up into the bezel, 2 ea. per bezel). The washer sticks up because the bezel is not countersunk. The other four screws which install horizontally are pictured in post #21. They have what looks like a raised ring around the head diameter.

                                I imagine in 1970 St. Louis, bezel screws weren't a priority on the assembly line, any mix of screws would accomplish the job.

                                Bezel screws??? I use to be cool guy with a life. Where did I go wrong?
                                Last edited by Mike F.; August 27, 2014, 06:37 AM.
